Cavazzuti DIDO PRO 6-Drawer Dryer 230V 3Phz
Professional six-drawer forced hot air garment dryer engineered for DTG, DTF, water-based, and plastisol curing with independent drawer controls, consistent heat distribution, and a compact, space-saving design.
Characteristics

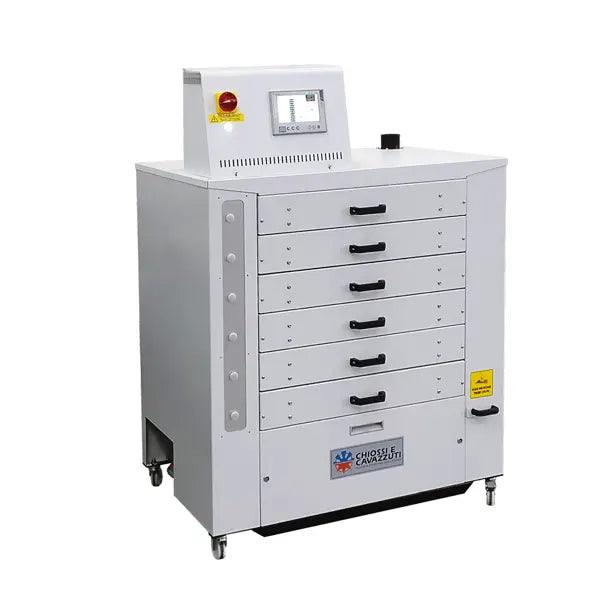

The Cavazzuti DIDO PRO 6-Drawer Dryer 230V 3PHZ is a premium vertical drawer dryer designed to provide fast, consistent curing while maximizing production efficiency in shops where floor space is at a premium. Manufactured by Chiossi & Cavazzuti in Italy, the DIDO PRO combines advanced forced hot air technology with six independently controlled drawers, allowing operators to cure multiple garments simultaneously without the footprint of a traditional conveyor dryer.
Each drawer operates independently with its own programmable timer, status indicator, and audible alarm, allowing garments requiring different cure times to be processed at the same time. This improves workflow, reduces bottlenecks, and increases productivity for DTG, DTF, water-based, plastisol, and specialty textile printing applications.
The DIDO PRO delivers uniform horizontal airflow throughout every drawer, ensuring even heat distribution across the garment surface for reliable curing, excellent wash durability, and vibrant print quality. A full-color touchscreen interface provides simple operation and precise temperature control up to 180°C (356°F), while programmable startup, standby mode, and controlled cooling functions help reduce energy consumption during production.
Designed for professional print shops, contract decorators, embroidery businesses, and print-on-demand operations, the DIDO PRO offers exceptional curing performance in a compact vertical cabinet capable of producing approximately 60 garments per hour while maintaining consistent results from the first garment to the last.

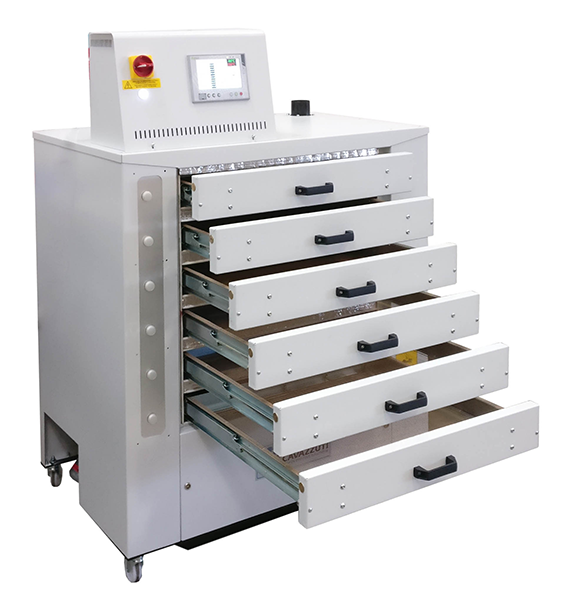

- Six independently controlled drying drawers
- Compact vertical design maximizes production while minimizing floor space
- Designed for DTG, DTF, plastisol, water-based, and specialty textile inks
- Uniform forced hot air circulation for consistent curing results

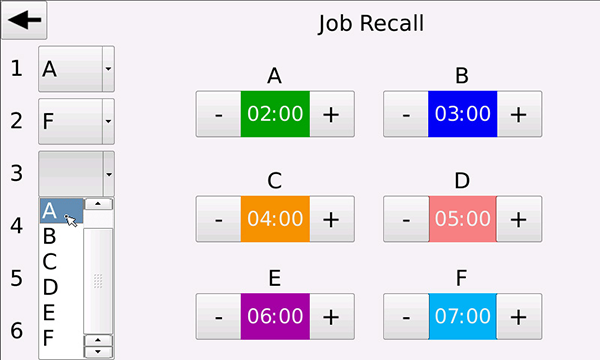

- Independent programmable timer for each drawer
- LED drawer status indicators with audible completion alarms

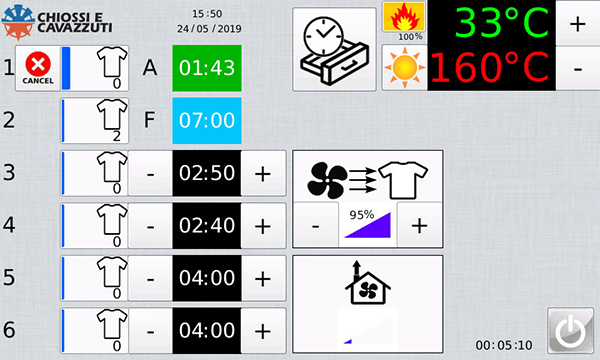

- Full-color touchscreen control panel
- Precise temperature control up to 180°C (356°F)
- Automatic startup scheduling and standby mode
- Controlled cooling cycle improves efficiency
- Insulated cabinet for improved energy savings
- Filtered airflow system helps maintain consistent performance
- Heavy-duty industrial construction
- Made in Italy by Chiossi & Cavazzuti
