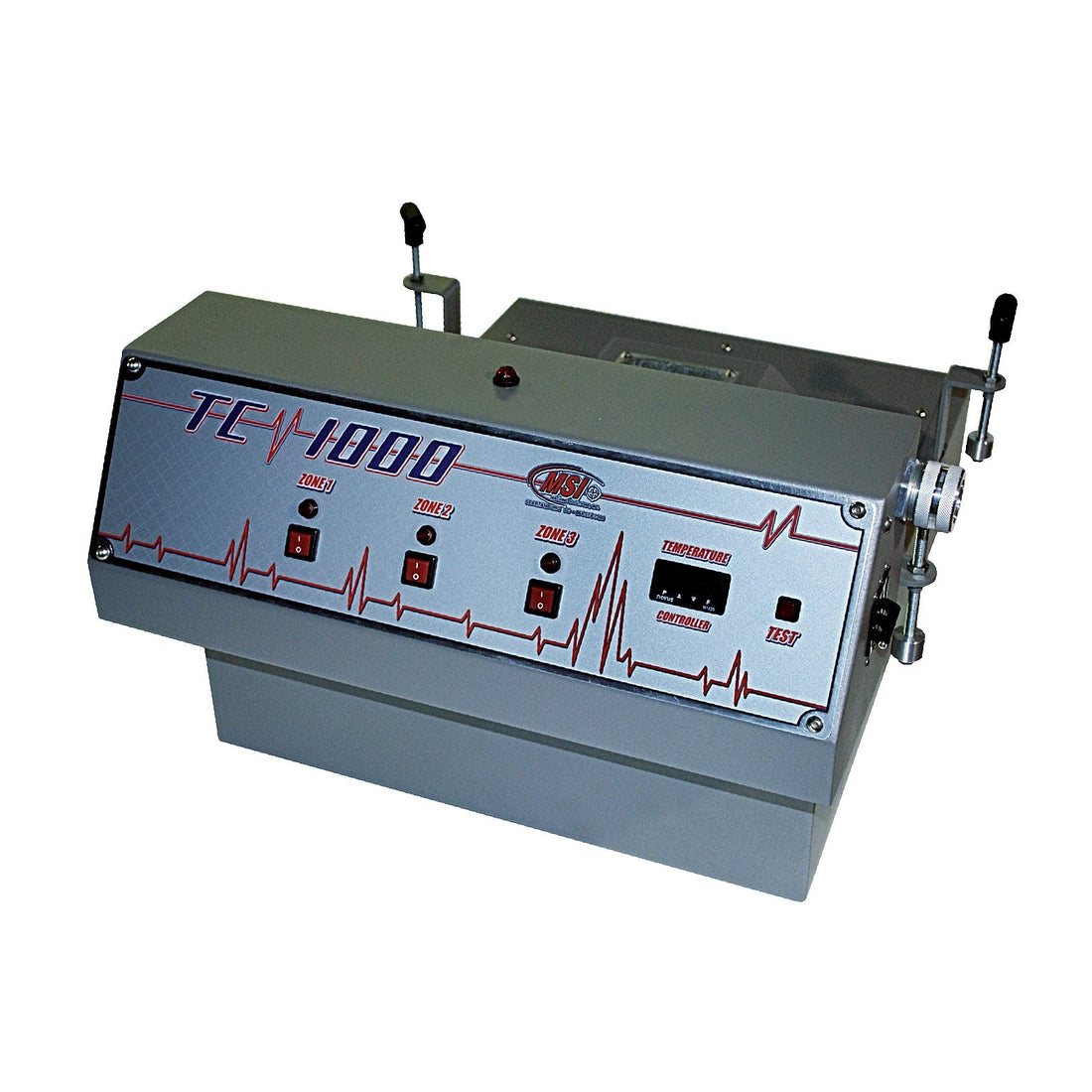

MSI TC-1000 18"X24" Flash Cure Temp Control 3/208V (TC-EX)
MS-TC1000-1824
Quoted for your shop with power, freight and install. Talk to a tech who has run one.
Or call: 763-391-7390 · 817-861-3464
Ships same day from MN & TX
MSI TC-1000 18" x 24": temperature-controlled flash cure for MHM S-Type presses.
Overview
The TC-1000 is a flash cure unit made in the USA by MSI (Machine Solutions Inc.) for MHM automatic presses. This 18" x 24" model fits the standard MHM S-Type.
Its temperature controller reads the temperature of the garment, so each flash reaches a proper cure without scorching delicate materials. The three heating zones switch on and off independently, and the height above the substrate is adjustable.
The unit interfaces with the press so it flashes automatically with each print cycle, and the Test button fires it by hand for setup.
Features
▼
-
Garment Temperature Control
A temperature controller reads the garment temperature to ensure a proper cure and avoid scorching delicate materials. -
Three Independent Zones
Separate on/off switches for each of the three heating zones. -
Height-to-Substrate Adjustment
Set the flash height above the pallet for each job. -
MHM Press Interface
Connects to the press so it runs automatically with the print cycle. -
Test Button
Fires a flash cycle manually for setup. -
Made in the USA
Built by MSI (Machine Solutions Inc.) in South Carolina.
Specifications
▼
Model
MSI TC-1000 18" x 24" (TC-EX)
Fits MHM Presses
S-Type (standard)
Flash Size
18" x 24"
Heating Zones
3, independent on/off
Control
Garment temperature controller, Test button
Electrical
208 V, 3 phase
Optional
50 A 3-phase on/off breaker (MS-VF18-A), sold separately
Best For
▼
MHM Automatic Presses
MHM S-Type
Heat-Sensitive Fabrics
Consistent Cures
